Is an Electric Combi Boiler Right for Your Home? Here’s What to Know First
Electric combi boiler installation is a smart, gas-free way to heat your home and get hot water on demand — all from one compact, wall-mounted unit.
Here’s a quick overview of what to expect:
| Topic | Key Facts |
|---|---|
| Average cost | $3,000 – $7,000 (most homeowners pay around $5,000) |
| Installation time | 4–6 hours (swap); 1–2 days (full conversion) |
| Efficiency | Up to 99% — no flue, no wasted heat |
| Who installs it | Licensed HVAC contractor + qualified electrician |
| Electrical requirement | Dedicated circuit; 230V (single-phase) or 400V (three-phase) |
| No gas line needed | Yes — ideal for off-grid homes or gas-free upgrades |
Whether you’re replacing an old gas boiler, upgrading a dated system, or starting fresh in a new build, electric combi boilers are worth a serious look — especially in homes where running a new gas line would be costly or impossible.
But installation isn’t always straightforward. Costs vary widely based on your home’s size, electrical setup, and whether retrofitting is involved. Getting the details right upfront saves you from expensive surprises.
I’m Richard Marcello, President of Advanced Heating & Cooling in Smithfield, RI, with over 30 years of hands-on HVAC experience guiding homeowners through decisions just like electric combi boiler installation. In this guide, I’ll walk you through everything you need to know — from costs and electrical requirements to what the actual install process looks like.
Understanding Electric Combi Boiler Installation and How It Works
If you’ve spent any time in a chilly basement staring at a massive, rusty tank, you’ll appreciate the simplicity of an electric combi (combination) boiler. Unlike traditional systems that require a separate water heater and a bulky boiler, a “combi” does it all in one sleek, wall-hung box.
When you turn on a hot tap or your thermostat calls for heat, the boiler uses high-powered electric elements to heat water on demand. This water is then circulated through your radiators or sent to your faucets. Because it doesn’t burn fuel, there’s no need for a flue (exhaust pipe), which means we can install these units in places a gas boiler could never go—like under a staircase or inside a kitchen cupboard.
One of the biggest selling points we share with our neighbors in Smithfield and Johnston is the efficiency. Electric boilers are up to 99% efficient. In a gas system, some heat is always lost through the chimney or flue. With an electric unit, almost every bit of energy you pay for is converted directly into heat for your home.
| Feature | Electric Combi Boiler | Gas Combi Boiler |
|---|---|---|
| Efficiency | 99% – 100% | 92% – 95% (Condensing) |
| Venting | None required | Flue/Chimney required |
| Moving Parts | Very few (quiet) | Many (fan, gas valve, etc.) |
| Installation Complexity | Low (if power is ready) | Moderate (gas lines + venting) |
| Safety | No Carbon Monoxide risk | Requires annual safety checks |
Comparing Electric vs. Gas Combi Boilers
When we’re out in the field in Greenville or Georgiaville, homeowners often ask if they should stick with gas or make the switch. From a carbon footprint perspective, electric is the clear winner—especially as our local grid incorporates more renewable energy.
Safety is another huge factor. With electric combi boiler installation, you eliminate the risk of gas leaks or carbon monoxide poisoning. There’s also the “noise factor.” Gas boilers have fans and combustion cycles that can be a bit noisy; electric boilers are virtually silent, making them perfect for smaller homes or apartments where the unit might be near a bedroom. If you’re curious about how this fits into your overall home comfort plan, you can check out more about our heating installation services.
Sizing Your Electric Combi Boiler Installation
Getting the size right is the difference between a cozy winter and wearing a parka in your living room. We measure boiler power in kilowatts (kW).
- 10 kW units: Perfect for small apartments or tiny homes (up to 1,000 sq. ft.).
- 20 kW units: The “sweet spot” for average-sized homes in North Smithfield or Esmond (1,500–2,000 sq. ft.).
- 30 kW units: Needed for larger homes (2,500+ sq. ft.) or houses with high ceilings and poor insulation.
We always perform a heat loss calculation before recommending a size. If you oversize the boiler, you’re wasting money on the unit and potential electrical upgrades; if you undersize it, you’ll be calling us because your shower is lukewarm.
Cost Factors for Your Electric Boiler Project
Let’s talk numbers. We know that budget is a top priority for families in Slaterville and Woodville. The average electric combi boiler installation typically lands around $5,000, though we see projects range from $3,000 to $7,000 depending on the complexity.
Labor is a significant portion of that. Professional HVAC labor rates generally run between $75 and $150 per hour. While it might be tempting to look for the cheapest bid, you’re paying for a licensed professional to handle high-voltage electricity and pressurized water—not a combination you want to gamble on.
For a deeper dive into how these costs compare to other systems, you might find this Combi Boiler Installation: Costs & Guide (2025) helpful. Also, don’t forget that local municipalities like Smithfield require permits for this type of work, which can add $50 to $500 to the bill. For more local insights, take a look at our smithfield-ri-heating-repair-101 guide.
Factors Influencing Total Installation Price
The “sticker price” of the boiler is only half the story. Here are the variables that move the needle:
- Retrofitting vs. New Build: Installing a boiler in a new home is straightforward. Replacing an old oil or gas system involves removing heavy tanks, capping gas lines, and potentially flushing decades of sludge out of your old radiators.
- Electrical Upgrades: This is the big one. Most electric boilers require a 60-amp to 100-amp circuit. If your home’s electrical panel is already full or only provides 100-amp total service, you might need a panel upgrade.
- Additional Accessories: Adding a smart thermostat (like a Nest or Ecobee) or outdoor sensors can add a few hundred dollars but will significantly lower your monthly operating costs by managing the heat more efficiently.
Technical Requirements and Electrical Setup
You can’t just plug an electric boiler into a standard wall outlet and call it a day. These units are power-hungry beasts. Electric combi boiler installation requires a dedicated circuit—meaning the boiler has its own “highway” of power directly from the breaker panel with no other appliances sharing the load.
Safety is paramount. We install a safety isolation switch near the boiler so the power can be cut instantly for maintenance. We also ensure cable sizing is exact; using a wire that’s too thin for the boiler’s amperage is a major fire hazard. You can read more about why professional setup matters in this guide on New Combi Boiler Installation & Replacement.
Regular upkeep is also vital to keep these technical components running smoothly. We always emphasize the importance of regular heating maintenance to our clients in Mapleville and Stillwater.
Single-Phase vs. Three-Phase Power for Electric Combi Boiler Installation
This sounds technical, but it’s actually pretty simple.
- Single-Phase (230V): This is what most residential homes in Rhode Island have. Most electric boilers up to 15kW can run on this. Some mid-range units use “jumper pins” to allow them to work on single-phase power, though they might not reach their absolute maximum heat output.
- Three-Phase (400V): This is more common in commercial buildings or very large estates. If you’re installing an 18kW or larger boiler, you’ll likely need three-phase power. If your home doesn’t have it, the cost to bring it in from the street is usually prohibitive.
Configuring Your Heating System: S-Plan and Y-Plan
When we integrate the boiler into your home, we have to decide how the water flows.
- S-Plan: Uses two or more motorized valves to create “zones.” You can heat the upstairs and downstairs independently. It’s great for efficiency.
- Y-Plan: Uses a single 3-port valve to switch between heating and hot water. It’s a bit more “old school” but very reliable and common in older Smithfield homes.
Proper configuration ensures your pressurized hot water is always ready when you need it. If you’re unsure what system you currently have, our team provides expert heating system maintenance in Smithfield to help diagnose and optimize your setup.

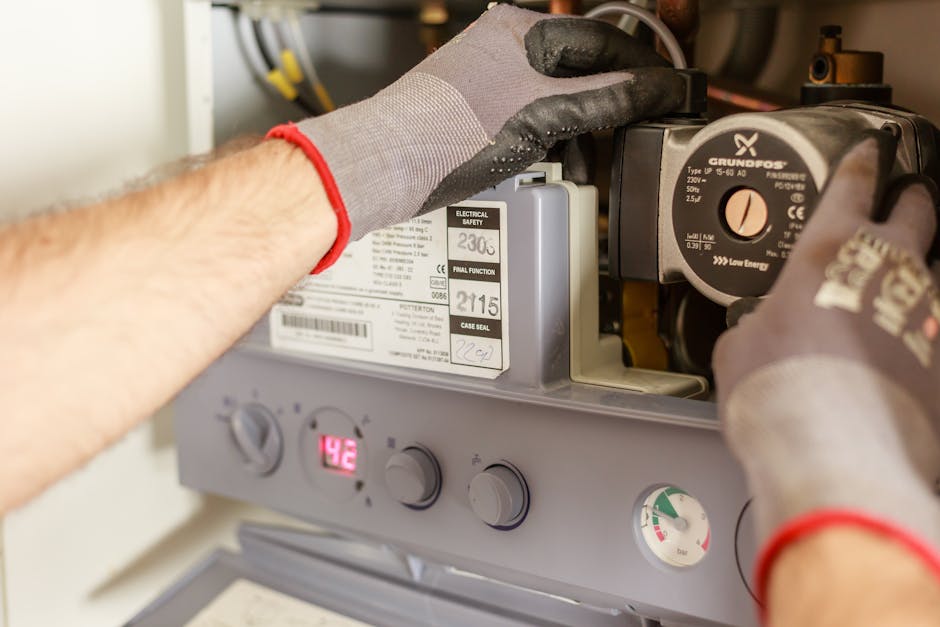

The Installation Process: New Builds vs. Retrofitting
What actually happens on “Install Day”? If we’re doing a retrofit, the first step is the “out with the old.” We’ll drain your existing system and remove that old clunker.
Next comes the system flush. We circulate a cleaning chemical through your pipes to remove rust and debris. This is a step some “budget” installers skip, but it’s critical. If that old gunk gets into your brand-new electric boiler’s heat exchanger, it can cause a breakdown in weeks.
Once the system is clean, we:
- Mount the new boiler using heavy-duty brackets.
- Connect the water pipework (inlet and outlet).
- Install the condensate drain (if it’s a condensing model).
- The electrician completes the high-voltage wiring.
- We commission the system, checking for leaks and ensuring the pressure is perfect.
Choosing the right team for this process is essential. You can learn more about choosing the right heating services to ensure your home is in good hands.
Professional vs. DIY Installation Considerations
We get it—saving $2,000 to $4,000 on labor sounds great. But electric combi boiler installation is not a DIY project for a Sunday afternoon.
First, there’s the warranty. Almost every manufacturer (like Navien or Ariston) requires professional installation to keep the warranty valid. If you install it yourself and a heating element pops, you’re on the hook for the full cost.
Second, there’s safety. You’re dealing with high-amperage electricity and high-pressure hot water. One loose wire or a poorly sealed pipe can lead to a fire or a flooded basement. Our team stays up-to-date on all local building regulations to ensure your home stays safe and compliant. We often discuss the benefits of regular heating system with our clients to help them understand the long-term value of professional care.
Frequently Asked Questions about Electric Boilers
How long does an electric combi boiler installation take?
For a straightforward “like-for-like” swap (replacing an old electric boiler with a new one), we can usually be in and out in 4 to 6 hours.
However, if we are performing a full conversion—removing an oil tank, capping gas lines, and upgrading your electrical panel—expect it to take 1 to 2 days. If you want to move the boiler to a new location (like from the basement to a kitchen closet), that will add more time for re-routing the pipework.
What maintenance do electric boilers require?
One of the best things about electric boilers is how little maintenance they need compared to gas. There’s no burner to get clogged with soot and no flue to inspect for cracks.
We recommend an annual inspection to check:
- Electrical connections (to ensure nothing has loosened due to thermal expansion).
- The expansion vessel pressure.
- Debris cleaning (we usually install a magnetic filter to catch any metal particles in your pipes).
- Pump operation.
With basic care, an electric boiler typically has a lifespan of 12 to 15 years.
What are common error codes and troubleshooting steps?
If your boiler stops working, don’t panic! Most modern units have a digital display that tells you exactly what’s wrong.
- Low Pressure: This is the most common issue. You usually just need to “top up” the water using the filling loop until the gauge reads between 1.0 and 1.5 bar.
- Sensor Faults: Sometimes a thermistor (temperature sensor) fails. This usually requires a professional part replacement.
- Power Supply Issues: If the screen is blank, check your circuit breaker. Electric boilers can occasionally “trip” the breaker if there’s a power surge.
If a simple reset doesn’t fix the issue, it’s time to call in the pros for a diagnostic. You can even use modern tools like the Navien mobile app for iOS or Google Android to monitor your system, or use their online chat for quick support.
Conclusion
Switching to an electric combi boiler is a fantastic way to simplify your home’s heating, save space, and move toward a greener future. While the upfront costs for electric combi boiler installation and potential electrical upgrades are something to budget for, the long-term reliability and low maintenance often make it a winning choice for homes in the Smithfield area.
At Advanced Heating & Cooling, we’ve spent the last 30 years helping our neighbors in Smithfield, Forestdale, and across Rhode Island stay comfortable. We pride ourselves on honest, quality workmanship—the kind where we treat your home like it’s our own.
If you’re ready to see if an electric combi boiler is the right fit for your family, give us a call. We offer free estimates and will give you a straight answer on whether your electrical system is ready for the switch.
Contact us for expert heating installation and repair today and let’s get your home ready for a cozy, worry-free winter!
