Why Proper Humidity Matters in Your Rhode Island Home

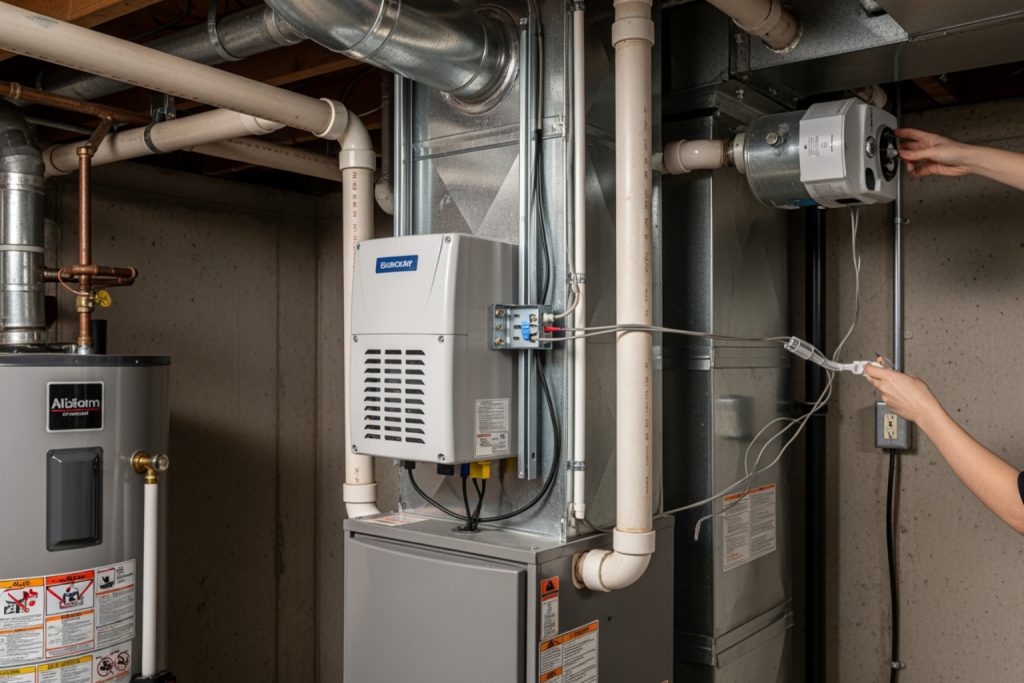

Attaching humidifier to furnace is one of the most effective ways to combat dry winter air that plagues New England homes. If you’re looking to install a whole-house humidifier, here’s what the process involves:
Basic Installation Overview:
- Choose your humidifier type – bypass, fan-powered, or steam (based on home size)
- Mount the unit – typically on the warm air supply duct near your furnace
- Connect water supply – using a saddle valve or T-fitting on a cold water line
- Install drainage – route drain hose with continuous downward slope
- Wire the controls – connect to furnace control board or humidistat (24V low-voltage)
- Test and adjust – check for leaks, verify operation, set humidity levels
As winter approaches in Rhode Island, many homeowners experience the discomfort of dry indoor air—nosebleeds, scratchy throats, static shocks, and even damage to wood furniture. Your gas furnace heats your home but also strips moisture from the air, sometimes dropping indoor humidity below 15-25%, far below the comfortable 35-40% range. A properly installed whole-house humidifier solves this by working directly with your HVAC system to add moisture throughout your entire home, unlike portable units that only treat single rooms.
I’m Richard Marcello, and over my 30 years in the HVAC industry here in Rhode Island, I’ve helped countless homeowners improve their indoor air quality by attaching humidifier to furnace systems. While this guide will walk you through the DIY process, I’ll also help you understand when professional installation makes more sense for your specific situation.
Attaching humidifier to furnace vocabulary:
- Smithfield HVAC installation services
- Smithfield furnace replacement company
- furnace replacement cost estimate
Choosing the Right System for Attaching Humidifier to Furnace
Before you start cutting into your ductwork, you need to select the unit that best fits your home’s architecture and your family’s comfort needs. In Rhode Island, where we see everything from 100-year-old Colonials in Stillwater to modern builds in Greenville, the “one size fits all” approach doesn’t work.
Bypass Humidifiers
The bypass humidifier is the most common type we see. It doesn’t have its own motor; instead, it relies on the pressure difference between the supply (hot air) and return (cold air) ducts. A “bypass” pipe pulls air from the supply, pushes it through a water-soaked pad (evaporative pad), and returns it to the system. These are reliable and cost-effective but require a bit more ductwork during installation.
Fan-Powered Units
Fan-powered humidifiers have their own internal fan that pulls air across the water pad. These are fantastic if you have limited space on your ductwork because they don’t require a bypass pipe. They can often produce more humidity daily than a standard bypass unit.
Steam Humidifiers
If you live in a larger home (over 4,000 square feet) or have a system with lower air temperatures (like some heat pumps), a steam humidifier is the gold standard. Units like the Aprilaire 800 or Honeywell TrueSTEAM boil water to create steam and inject it directly into the airflow. For a plain-language overview of humidity concepts and why they matter indoors, see Humidity.
| Feature | Evaporative (Bypass/Fan) | Steam Humidifier |
|---|---|---|
| Capacity | 12-18 Gallons Per Day | Up to 35+ Gallons Per Day |
| Home Size | Up to 3,000 – 4,000 sq ft | 4,000+ sq ft |
| Energy Use | Low (uses furnace heat) | High (boils water) |
| Water Source | Hot or Cold (Hot preferred) | Cold or Hot |
| Maintenance | Change pad annually | Replace canister annually |
When deciding between a humidifier vs dehumidifier, in Smithfield, we usually need the humidifier in the winter to add moisture and a dehumidifier in the humid summer months to remove it.
Preparation and Tools for Installation
Preparation is the difference between a two-hour job and an all-day headache. First, check with your local municipality (like the Smithfield building department) regarding permit requirements. While many minor HVAC modifications don’t require a full permit, it’s always better to be safe.
You will need the following tools:
- Power Drill: For mounting and starting your duct cuts.
- Tin Snips: To cut the rectangular opening in your galvanized steel ducts.
- Level: To ensure the unit sits straight (crucial for proper water drainage).
- Tape Measure: For precise template placement.
- Foil Tape: Do not use standard “duct tape.” Use UL-rated foil tape to seal air leaks.
- Safety Gear: Work gloves (duct edges are razor-sharp!) and safety glasses.
Materials Checklist:
- Humidifier kit (including the template).
- 24V Transformer (if not included).
- 1/4-inch copper or braided water line (avoid plastic tubing as it can warp or crack over time).
- 1/2-inch ID drain hose.
- Shut-off valve (saddle valve or T-fitting).
Step-by-Step Guide to Attaching Humidifier to Furnace
Ready to get to work? Follow these steps carefully. If you feel overwhelmed at any point, regular heating maintenance or professional setup is always an option.
1. Identify the Best Location
The ideal spot for attaching humidifier to furnace is on the supply plenum—the large metal box directly above or on the side of your furnace where the warm air comes out. If space is tight, you can mount it on the return duct, but you must ensure the bypass air comes from the supply side.
2. Use the Template
Most kits include a paper template. Tape it to the duct, ensuring it is perfectly level. If the humidifier isn’t level, water will pool on one side of the pad, leading to uneven evaporation and potential leaks.
3. Cut the Opening
Drill a hole in each corner of the template to give your tin snips a starting point. Carefully cut out the rectangle. Pro tip: Wear your gloves here; galvanized steel will slice through skin like a hot knife through butter.
4. Mount the Unit
Slide the humidifier housing into the hole. Secure it using the provided sheet metal screws. Ensure the mounting bracket is firm and doesn’t vibrate when the furnace blower kicks on.
5. Install the Bypass Duct (For Bypass Models)
If you’re installing a bypass unit, you’ll need to cut a second hole in the return air duct and connect the two with a 6-inch flexible or rigid pipe. This allows the pressure difference to move air through the humidifier.
Finalizing Connections for Attaching Humidifier to Furnace
Once the unit is on the wall, it’s time to bring in the water. We recommend using a T-fitting for the most reliable connection, though many kits come with a “saddle valve” that clamps onto an existing pipe.
- Water Supply: Tap into a cold water line. While some people use hot water to increase evaporation, cold water is standard. Ensure the 1/4-inch line is secured and not vibrating against the furnace.
- The Solenoid Valve: This is the “gatekeeper” that turns the water on and off. Connect your water line to the inlet side of the solenoid.
- Drainage: This is where many DIYers fail. You must have a 1/2-inch drain line that runs with a continuous downward slope to a floor drain or condensate pump. If there’s a “trap” or an upward kink in the hose, water will back up and flood your furnace.
Wiring and Controls for Attaching Humidifier to Furnace
Wiring sounds scary, but we’re dealing with 24V low-voltage power—similar to a doorbell.
- Mount the Humidistat: This is the “thermostat” for your humidity. It can be mounted on the return duct (upstream from the humidifier) or on a wall in your living space.
- The Transformer: If your furnace doesn’t have a dedicated “HUM” terminal, you’ll need to install a 24V transformer.
- The Connection: You want the humidifier to turn on only when the furnace blower is running. Connecting to the “HUM” and “C” terminals on your furnace control board is the cleanest way to do this.
- Sensing Options: If you can’t access the control board, you can use a “sail switch” (which detects airflow) or a “current sensing relay” (which detects the blower motor’s electricity) to trigger the unit.
Testing, Maintenance, and Avoiding Common Mistakes
Before you walk away, you must test the system. Turn your furnace on and crank the humidistat to its highest setting. You should hear a “click” from the solenoid valve, and within a minute, you should see water trickling out of the drain line.
Common Mistakes to Avoid
- Ignoring Static Pressure: Your supply plenum static pressure shouldn’t exceed 0.4 in. wc. If the airflow is too restricted, your furnace could overheat.
- Poor Sealing: Use foil tape around all duct connections. Air leaks reduce efficiency and can cause whistling noises.
- Skipping the Level: If the unit is tilted, water will bypass the pad and leak into the furnace electronics.
Maintenance for Longevity
A humidifier is not a “set it and forget it” device.
- Pad Replacement: In Rhode Island, our water can be “hard,” leading to mineral buildup. Replace the evaporative pad at least once a year—usually at the start of the heating season.
- Summer Shutdown: When the heat goes off, turn off the water supply to the humidifier and close the bypass damper (if equipped). This prevents mold growth during the humid summer months.
- Cleaning: Use a mixture of water and vinegar to clean mineral deposits from the solenoid and the distribution tray.
Regular care ensures you get the benefits of a well-maintained heating system without the risk of mold or rust.
Frequently Asked Questions about Furnace Humidifiers
Can I install a humidifier on a downflow furnace?
Yes, but it requires extra care. Downflow furnaces (common in mobile homes) blow air downward. You often need a non-combustible base or a specific coil cabinet. A major concern here is air leakage; if cold A/C air leaks into the furnace during summer, it can cause condensation and rust. We often recommend using rigid foam insulation to block the humidifier opening during the cooling season to protect the system.
How much does it cost to install a humidifier on a furnace?
The average cost to have a professional handle the installation ranges between $300 and $600. If you choose a high-end steam unit like the Aprilaire 800, the unit itself can cost around $700, plus labor. While DIY saves you the labor cost, a professional ensures the heating installation is code-compliant and won’t void your furnace warranty.
Should I DIY or hire a professional for attaching humidifier to furnace?
Ask yourself these three questions:
- Am I comfortable cutting into my home’s main HVAC trunk?
- Do I understand 24V electrical diagrams?
- Can I safely tap into a water line without creating a leak?
If the answer to any of these is “no,” it’s time to call in the experts. Professional heating system maintenance in Smithfield ensures that your water lines are secure, your wiring is safe, and your furnace’s airflow is balanced.
Conclusion
Attaching humidifier to furnace units is a fantastic investment in your home’s comfort and health. From preventing itchy skin to protecting your hardwood floors, the benefits are felt immediately. Whether you choose a simple bypass unit or a powerful steam system, proper installation is the key to success.
